Rotary actuator for 2-way
fan coil valves
DN 15...25
Open/Close control (AC 230 V)

Product features

Simple direct mounting on the RB...fan coil valve by means of a single screw. The actuator can be mounted on the ball valve in any of four 90° positions.
Manual operation by knob (press and turn for temporary disengagement).
Wiring Refer to CF230... thermostat datasheets.

Advantages

- High close-off pressure : 600kPa
- Easy to install
- Low sound power level
- Leakage rate: tight sealing - Long life cycles
- No water hammer
-Matching with Belimo new CF230... thermostat

• For open and closed cold and warm water systems
• For shut-off functions on the water side and 2-point controls in air handling units and heating systems
• Air bubble tight

download the pdf here

• For open and closed cold and warm water systems
• For modulating water-side control of air handling units and heating systems
• Air bubble-tight

download the pdf here

Energy efficiency for zone applications.

The PIFLV™ is a pressure independent flow limiter valve that is specially designed for ON/OFF cooling zone applications. It is the best fitting solution where large delta T is required.

Overall Benefits

▪ Large flow rate range, covers up to 1 l/s
▪ Clog-resistant flow limiter design
▪ Low working pressure 20kPa to be pressure independent
▪ Zero leakage minimizes energy loss
▪ High body pressure rating PN25
▪ Actuator runs at low power
▪ Quick actuation 75s/90s as standard; fast running options: 7s/15s/35s available

download the pdf here

Air Solution Product Range.

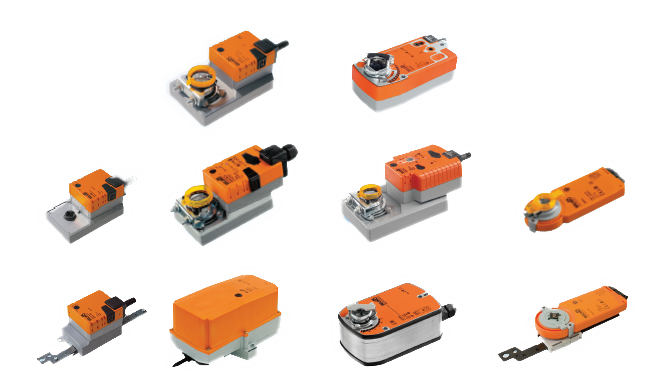

Belimo provides the world’s most comprehensive range of servomotors for air dampers which includes rotary, linear and full-rotation actuators with a wide range of motorisation levels and actuating times. The actuators cover almost all power requirements for the control of air flows in air-conditioning plants, from treatment and distribution to feedback and retreatment.
This year, we are making further advancement on our latest Fire and Smoke Product lines – BFL and BFN series (CE Certification) and FSAF..A and FSTF series (UL requirements). BFL and BFN (CE Certification) are particularly patent-designed with integrated Position Safety Lock™ and optimised for maximum life safety; while FS series are designed to cover a wide range of torque requirement. In other words, it just makes life easier!
Belimo proudly introduces the new range of Fire Damper actuators to the market. It sums up years of experience in developing and producing HVAC actuators for global markets and establishes a higher standard of performance with state-of-the-art technology.

for a complete catalog of Belimo Air Products can be downloaded here

Damper actuators are responsible for ensuring reliable functioning HVAC systems. Damaged actuators lead to a degradation of system performance which causes energy waste, occupant discomfort, loss of time and increased labor costs. A poorly functioning system can be transformed into a more efficient system with Belimo damper actuator retrofit solutions, which are compatible with all major control systems and maximizing installation efficiency and minimizing costs. Damper actuators can quickly and conveniently be replaced without any interruption in service

for a complete catalog of Belimo damper actuators Products can be downloaded here
